Introduction

This article will help you to understand what is command builder, what is his purpose and how you can use it.

What is a command builder?

The command builder is a functionality that can be used in order to add different types of remarks or commands in the PNR. Travel agencies are able to set rules when the command will be auto-generated in the PNR.

Setup

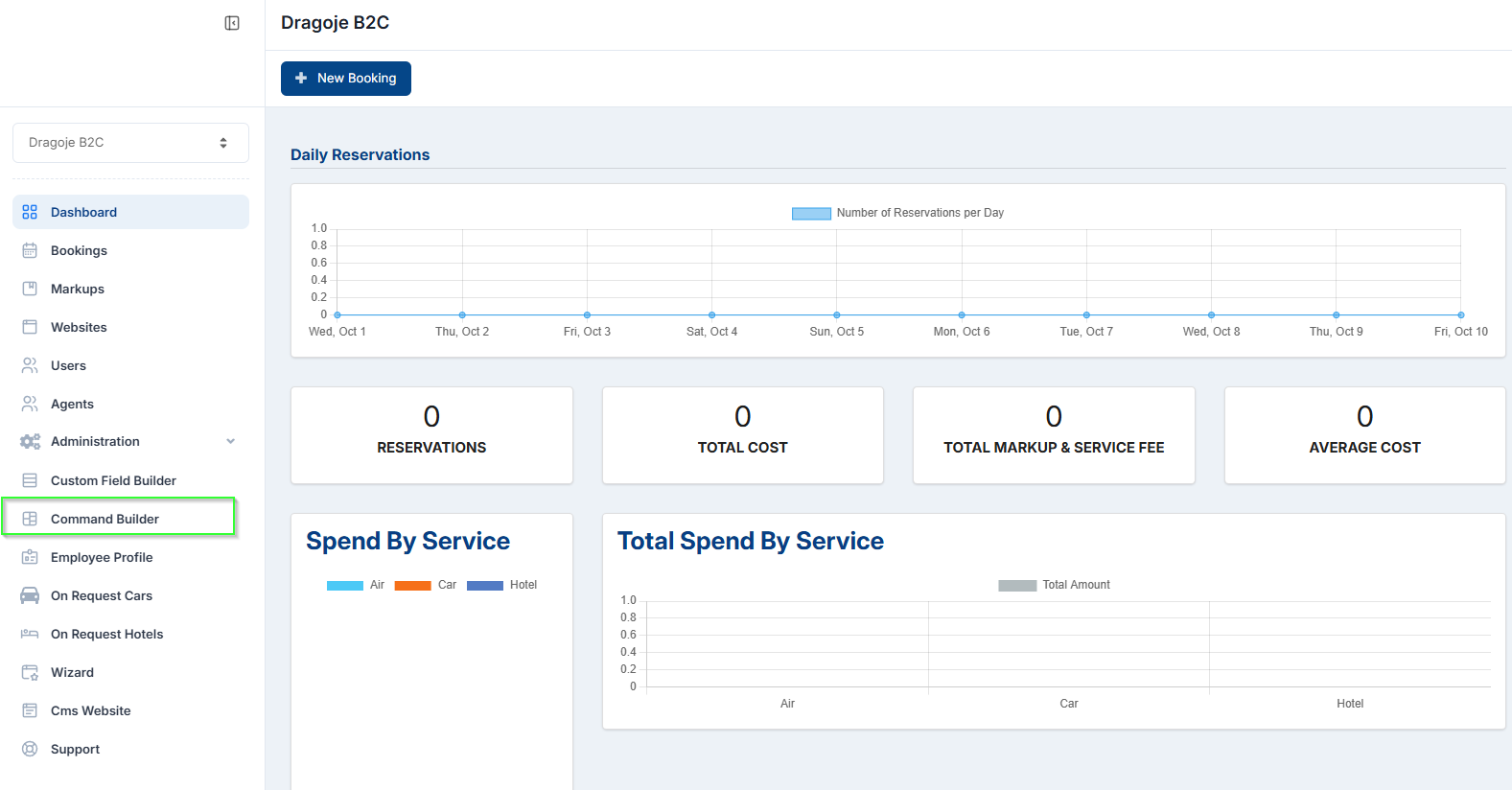

Please follow the next path in order to find the Command builder location:

Admin panel → Command builder

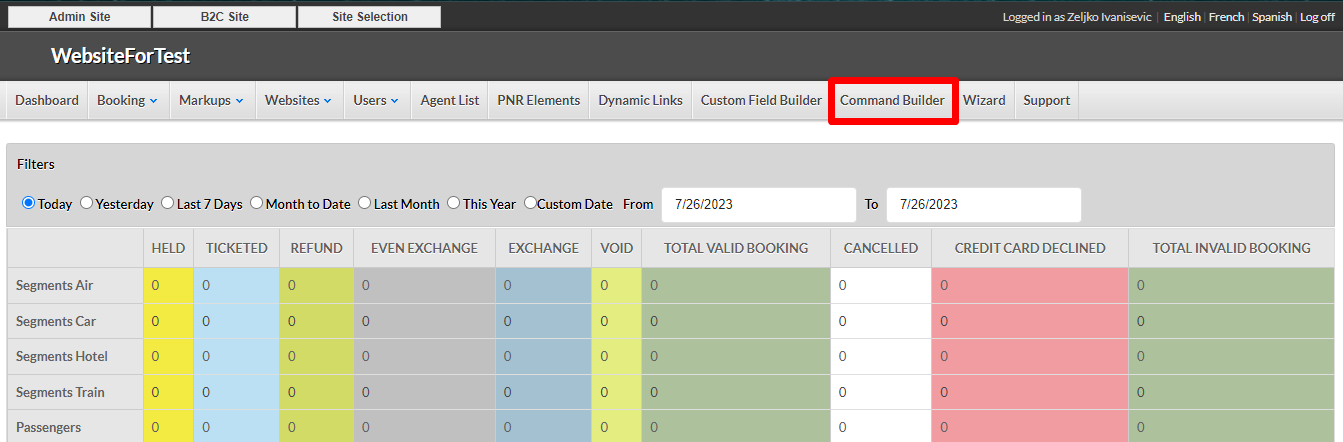

Image 1. Command builder location

How to use it

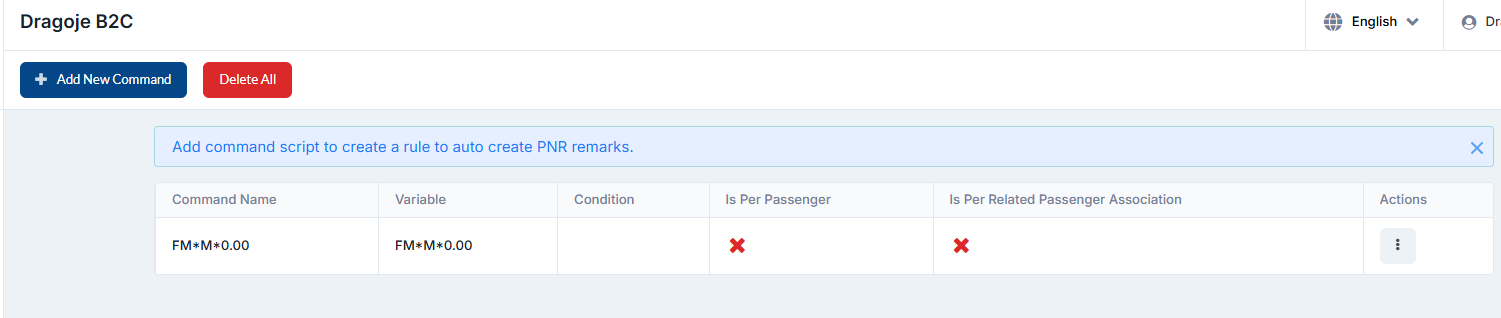

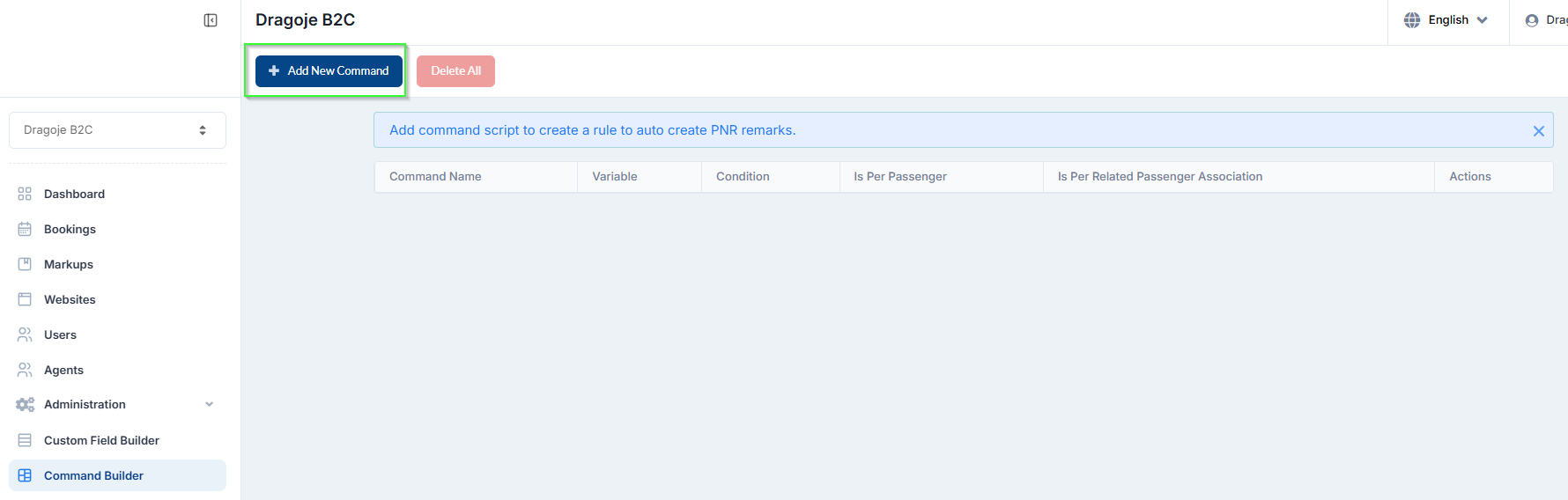

When you enter the Command builder section, you will see the Add New Command button, and below it, there will be commands that you are already created if they exist:

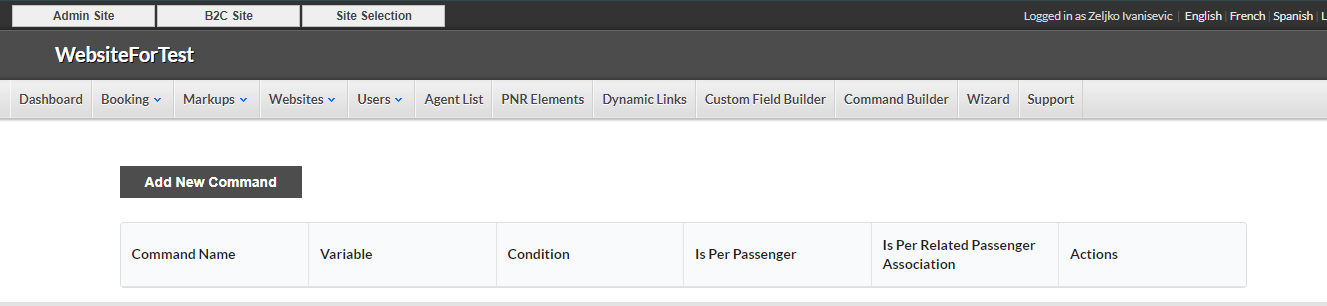

Image 2. Command builder

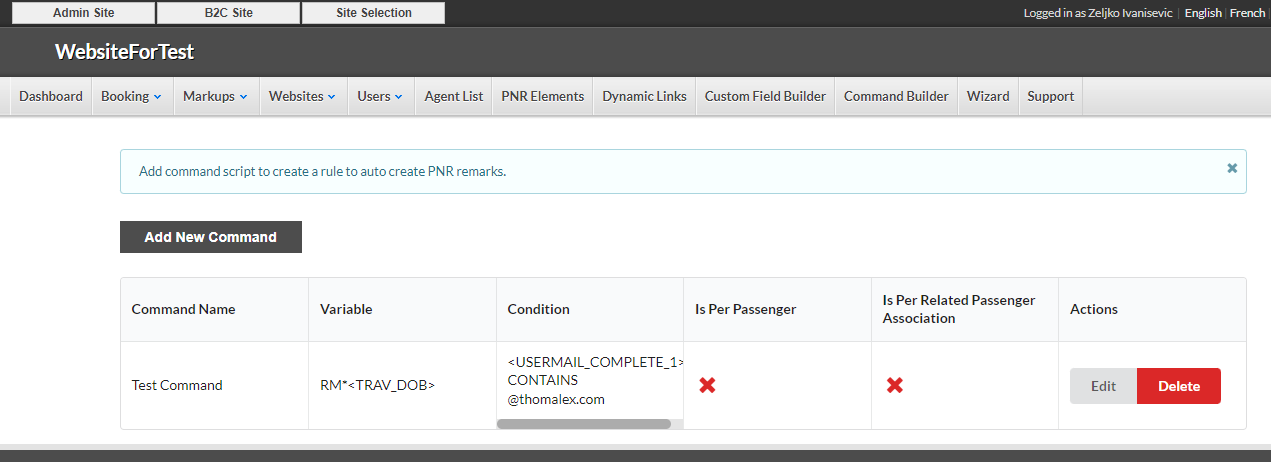

If you already have some commands created you will see them. You will have information about command name, variable, condition, is per passenger or not, and per related passenger association. Under the action, you can edit or delete the command:

Image 3. Existing command

By clicking on the Add New Command button, you will get the form where you will create your command.

First, you will need to name the command that you will create. This field is mandatory, and there is no restriction on how you can name it.

The second thing that you can choose is various types of variables. When you choose one of the variables you need to click on Add button. This field is not mandatory to be selected. You can add as many variables as you want into one command.

Command builder also allows you to add remarks for custom fields that you have created:

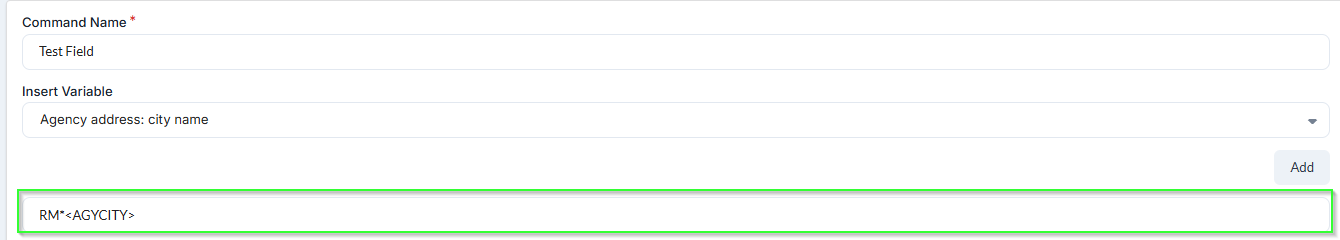

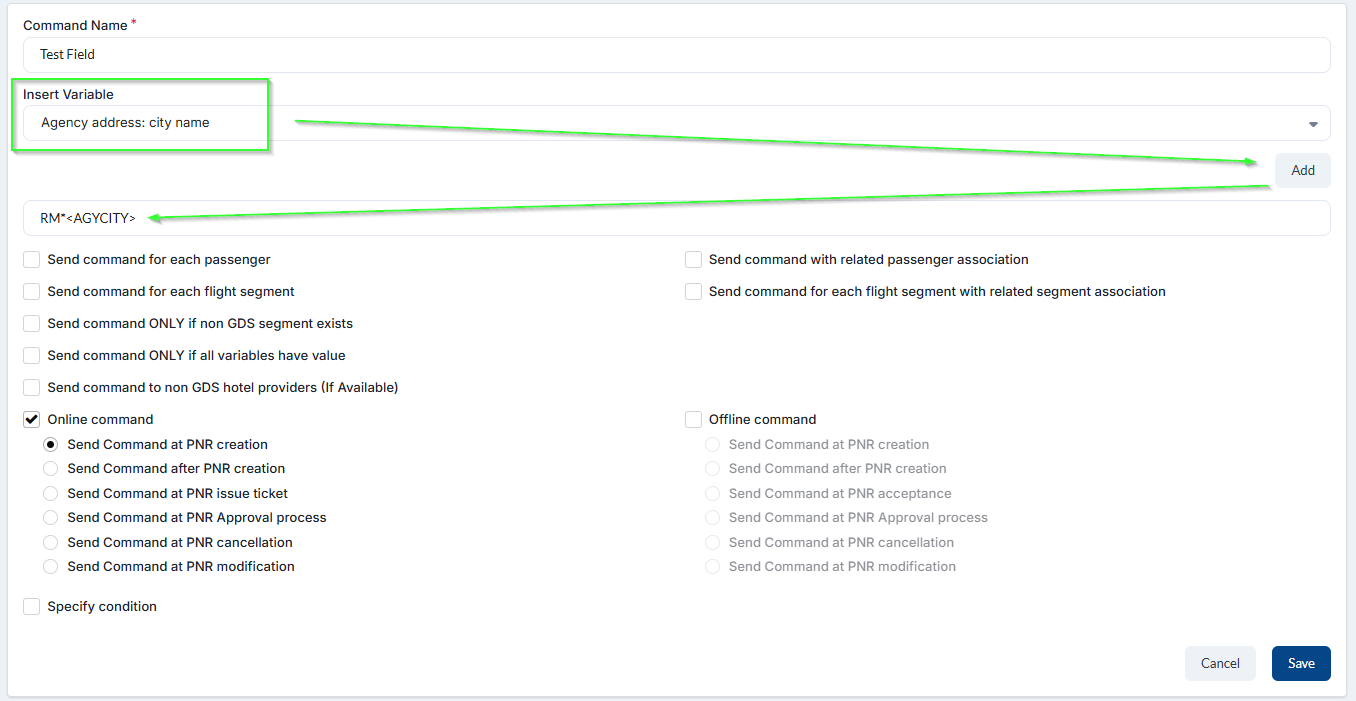

Image 4. Adding command for the custom field

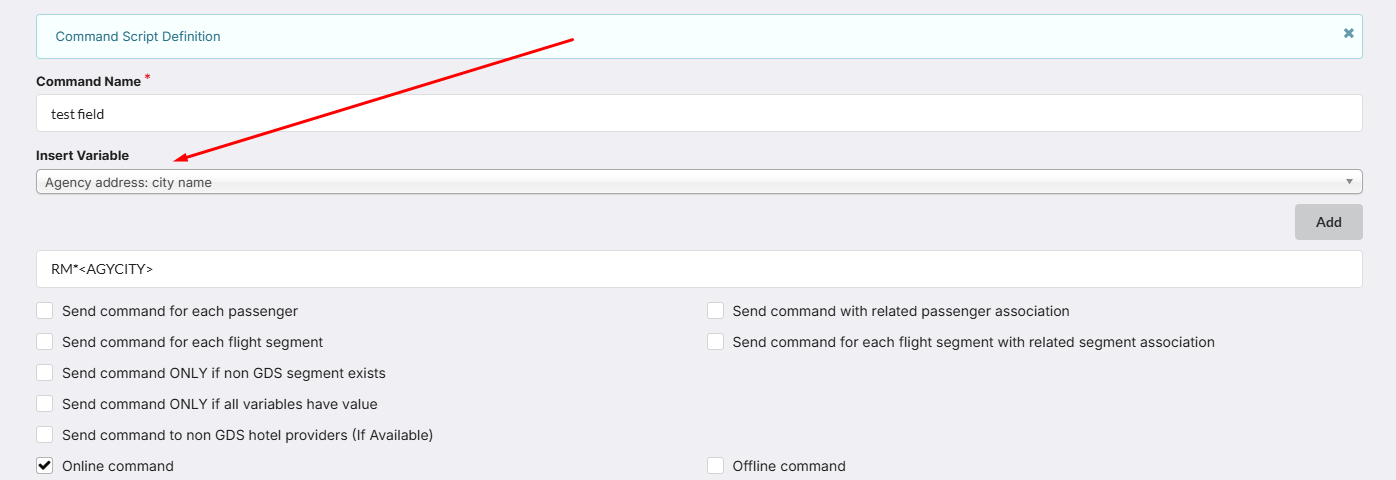

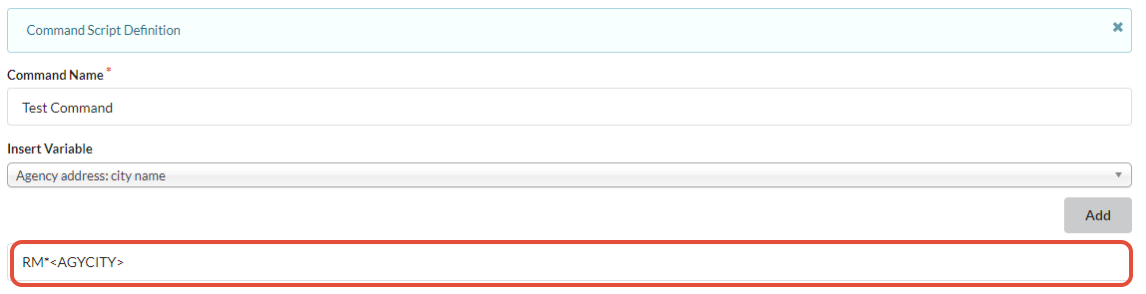

When you click on Add button, the variable will be added in the field below:

Image 5. Adding variables

NOTE: The command builder allows you to set free flow text remark. In that case you do not need to select and add variable. In the text field you can enter what remark you want to have. However, that means that remark will be the same for all reservations. For example, if you enter command RM*TEST123 this remark will appear in all reservations that are created on your website.

NOTE: Examples in the screenshots are for Amadeus command. The command for Sabre should start with 5 instead of RM as it as for Amadeus. Also, Sabre has special characters like cross-of-lorrain, change key and end item. In the table below you can find what symbol you need to enter on Thomalex system in order to these special character be sent to Sabre.

Table 1. Sabre special characters in Thomalex

In the table below you can find options and explanations of how and when the command will be applied:

Table 2. Options and explanations

Specify conditions

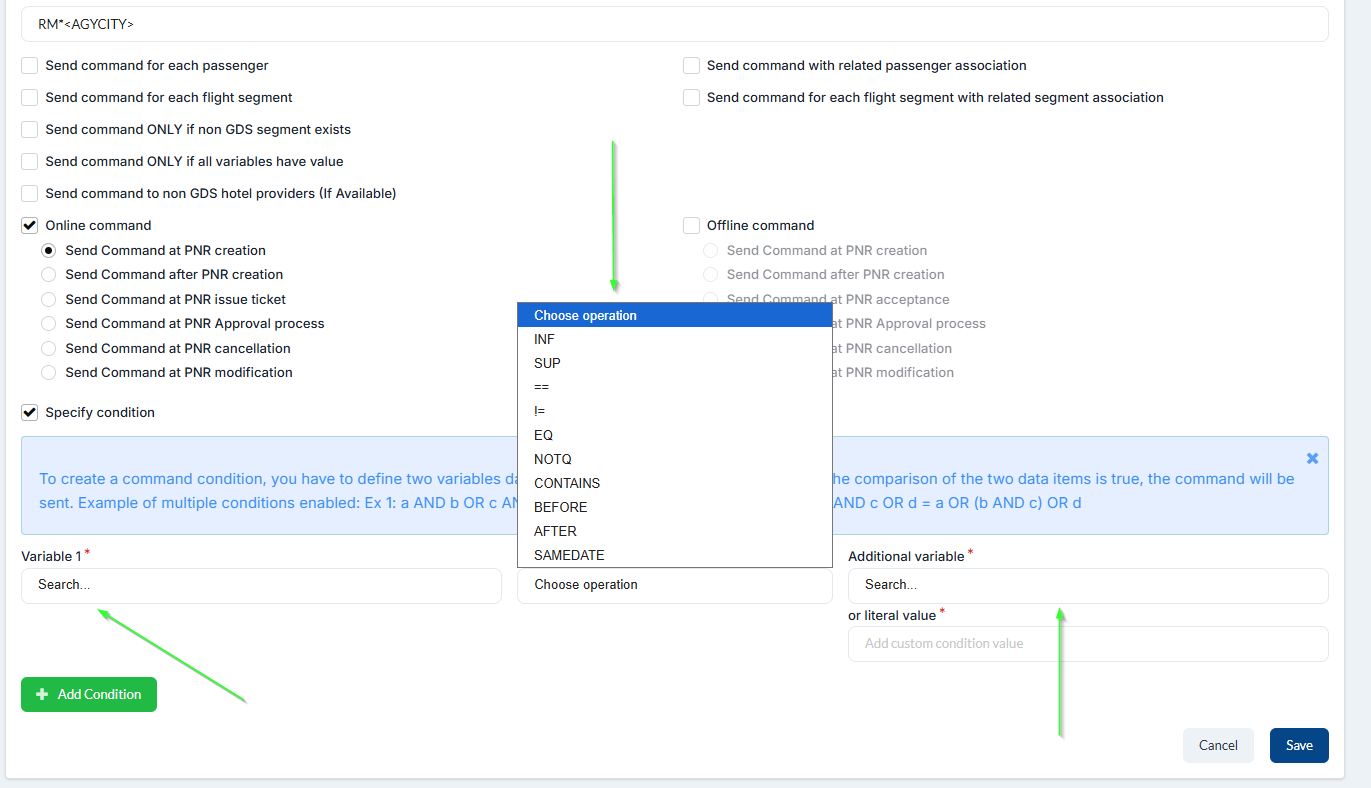

If this option is enabled you can add conditions which need to be applied in order to execute the command.

There are two ways to specify conditions.

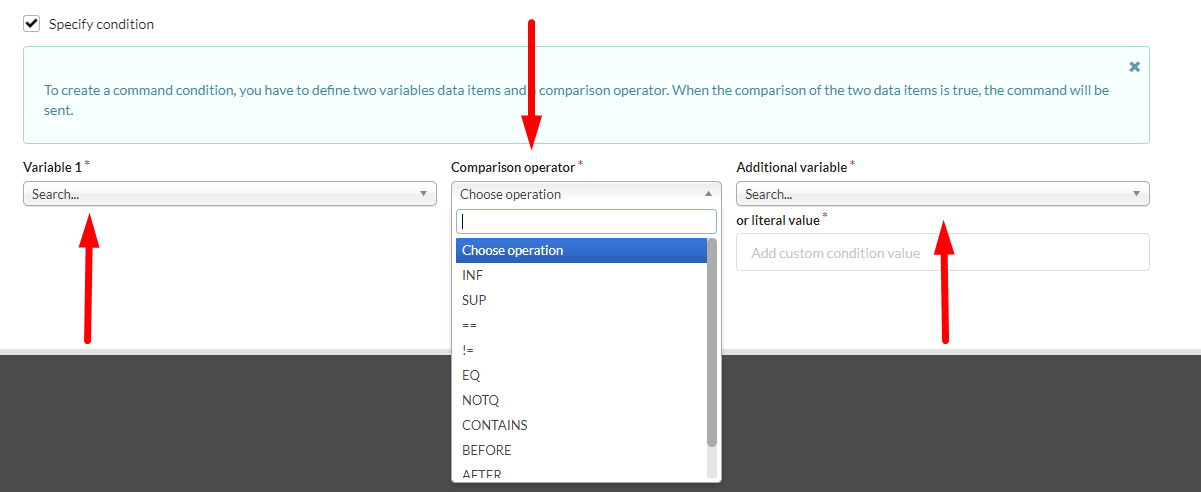

The first one is that you have to define two variables data items, and a comparison operator. When the comparison of the two data items is true, the command will be sent.

Image 6. Setting Condition

The second one is to select Variable 1, then select comparison operator, and in the field for the literal value you can enter whatever you want to be matched with the variable. It is a free-flow text.

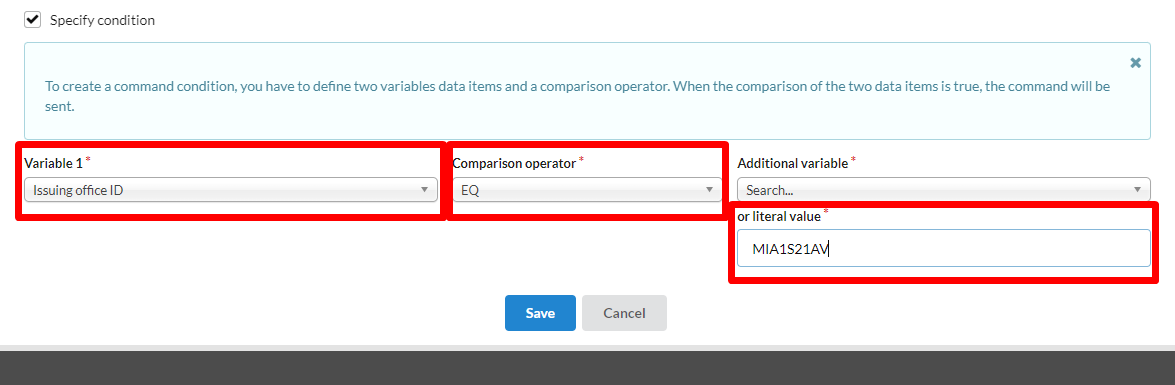

For example, you want to set that command will be sent only if the issuing office ID is a specific one. You will select the variable Issuing Office ID under Variable 1, select operation as EQ (equal), and in the literal value you will enter the specific Office ID:

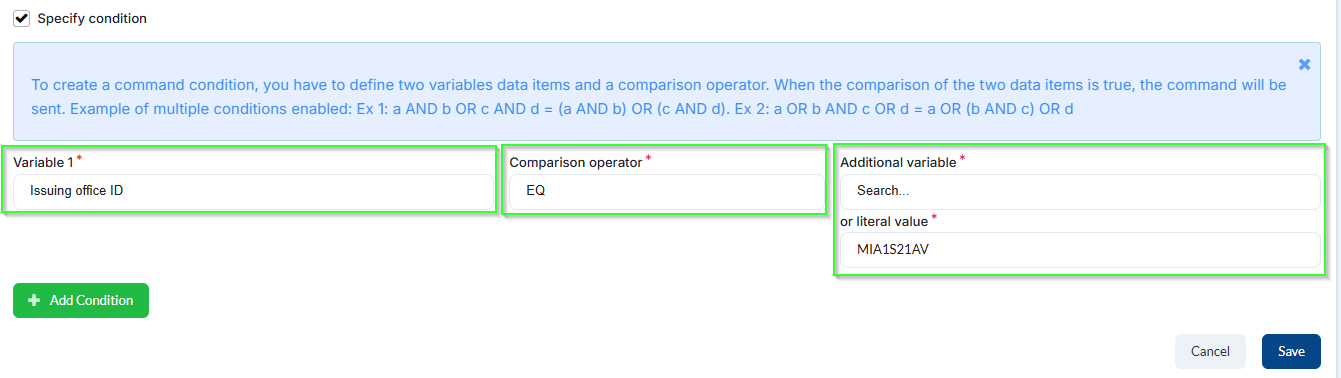

Image 7. Setting up conditions with the literal value

In the table below you can find what each comparison operator means:

Table 2. Comparison operators and explanations

Examples

In the example below we will create one simple command and see how it will be executed.

Example 1:

We will create a command that will send the Travelers' last name. Before we added the variable we will enter RM*Traveler Last name: to be easier to find the remark. And now we will add a variable. We will set that as online command and it will be created at the creation of the PNR:

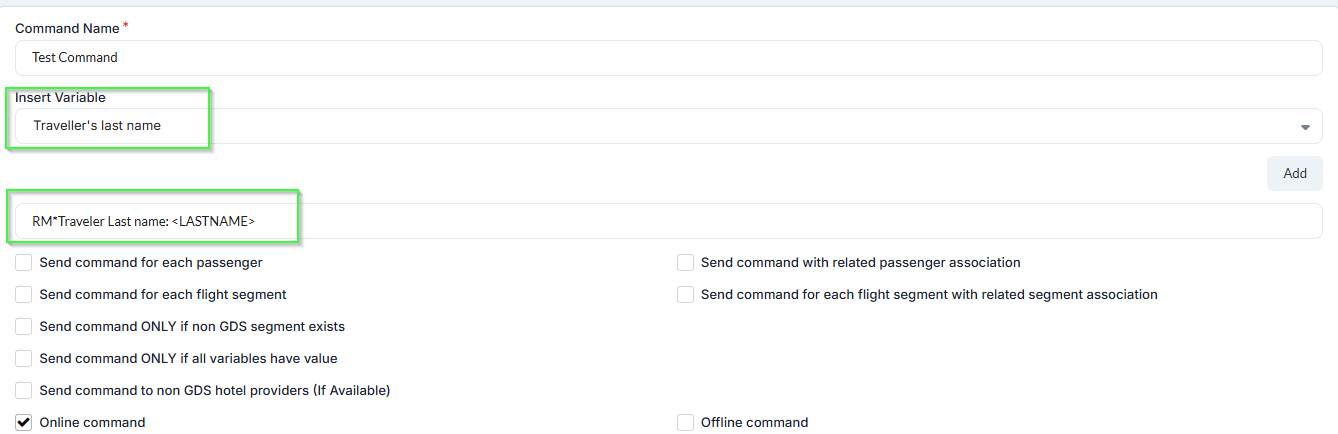

Image 8. Simple test command

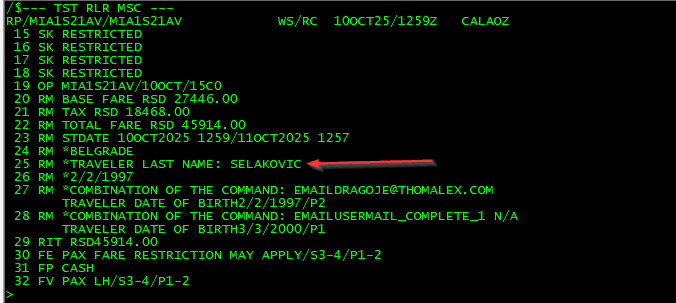

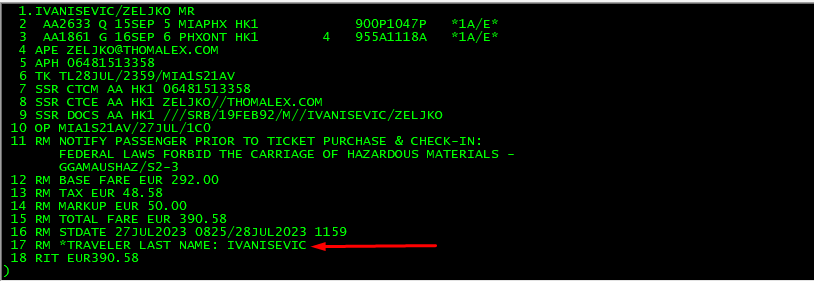

When we create a reservation and retrieve PNR, we will see that RM is created:

Image 9. Command executed

Example 2:

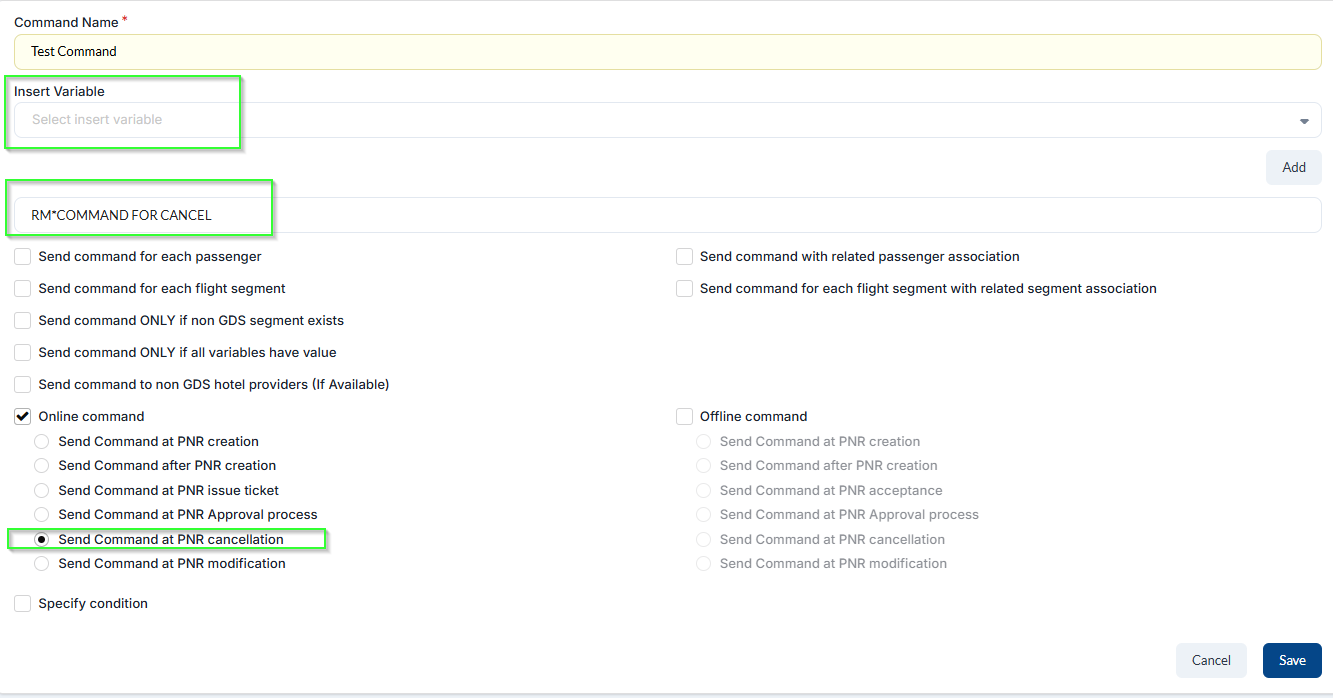

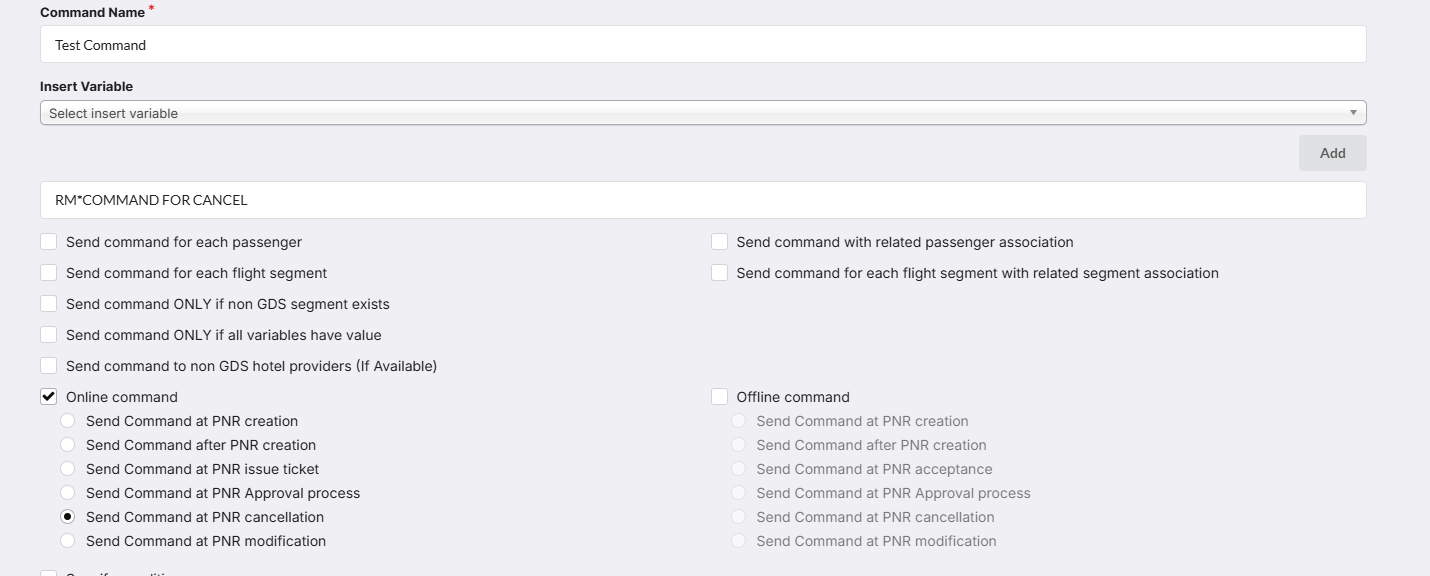

We will create a command but we will not use any variable. This time we want to be created when the PNR is canceled so we are selecting online command and send command at PNR cancelation. The command will be RM*COMMAND FOR CANCEL.

Image 10. Testing command when PNR is canceled

When the reservation is created and we retrieve PNR, we can see that we do not have a remark that we created.

Image 11. No command executed

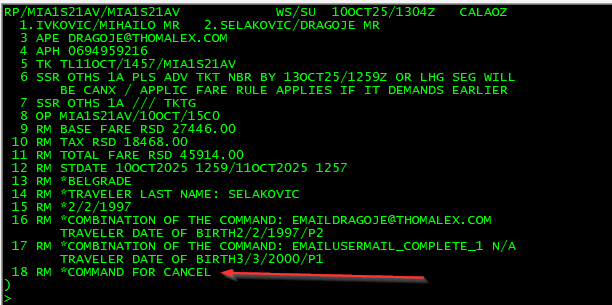

But, when we cancel the reservation and check again we can find the remark that we created and that is expected behavior:

Image 12. Cancel command executed]

Example 3:

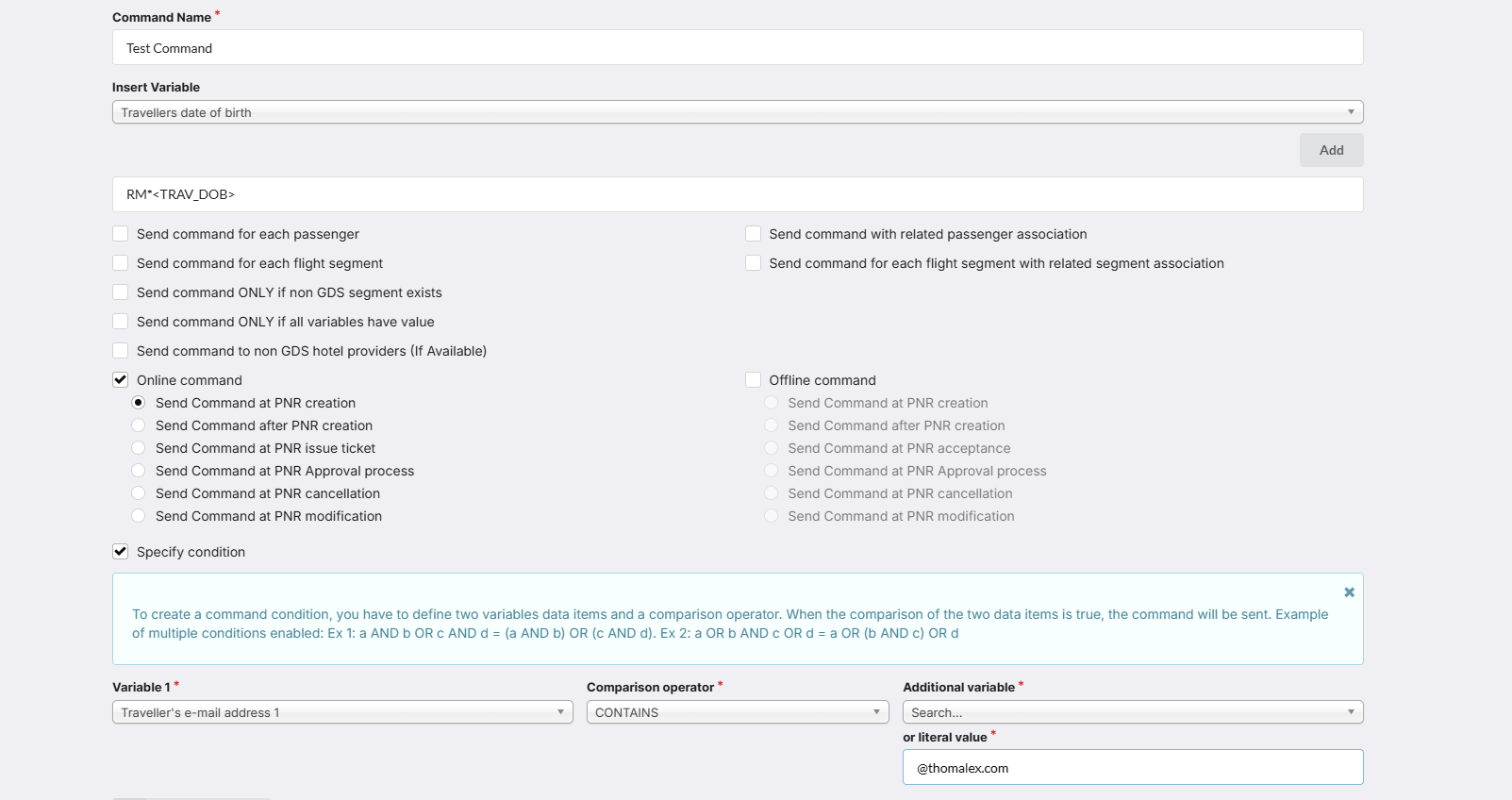

We will create a command to be executed but with a condition. We will set that online command at PNR creation with variable Travelers date of birth execute only if Travelers email contains @thomalex.com:

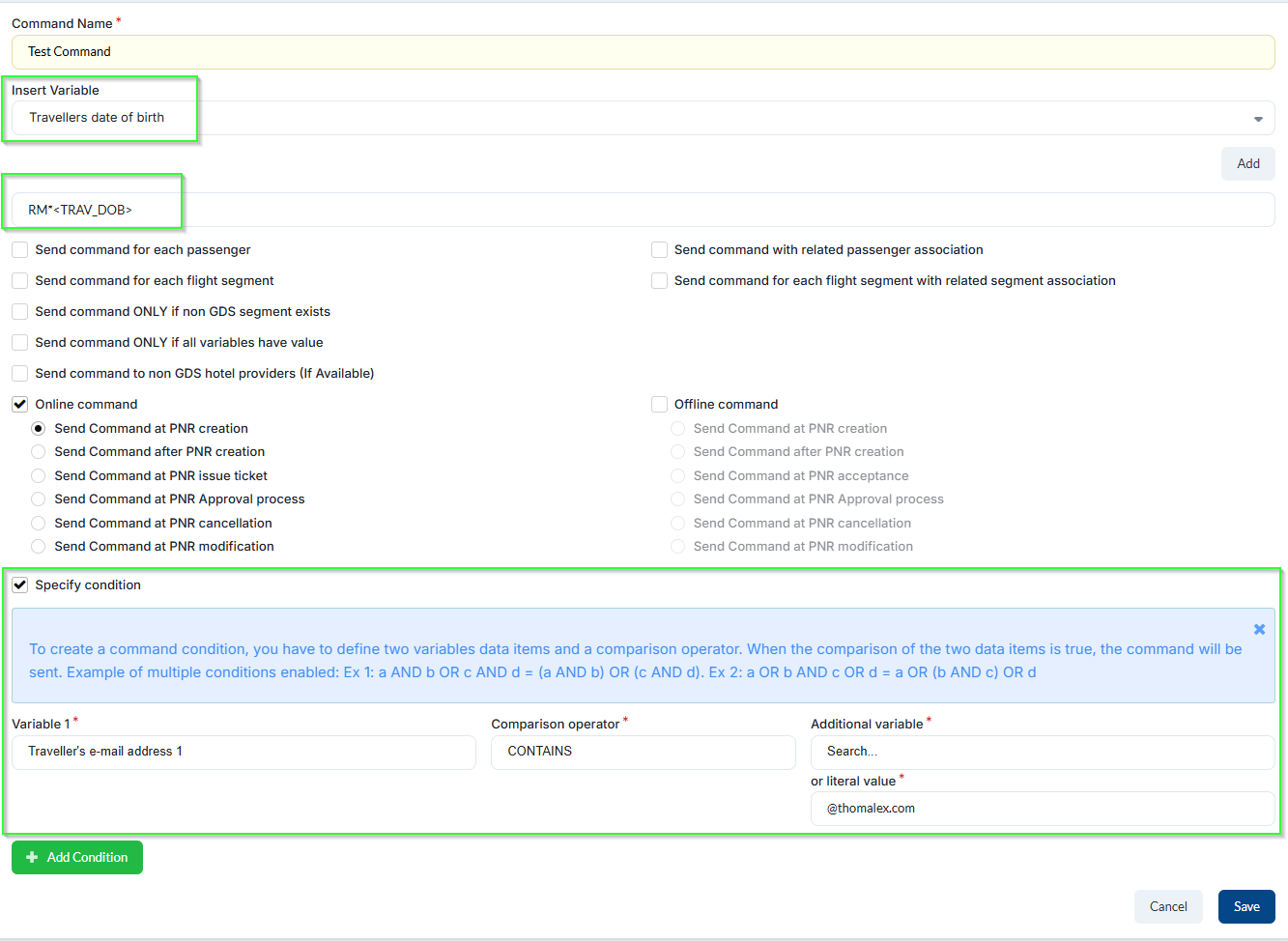

Image 13. Command with the condition

Now we will create a reservation with the traveler's email that not contains @thomalex.com so we can check if the command will be executed.

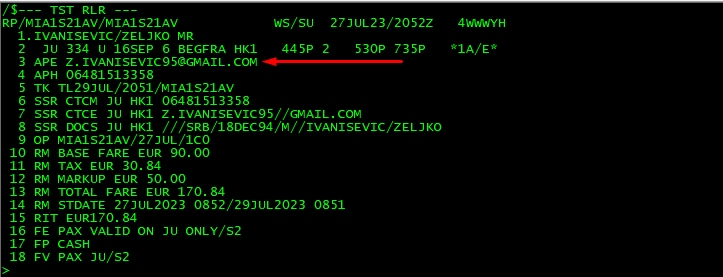

As we can see, the traveler's email does not contain @thomalex.com. Since the condition is not true, we can not find a remark with the date of birth. In this case, the command works as expected.

Image 14. Condition is false no remark was added

Now we want to check if the command will execute if the email contains @thomalex.com.

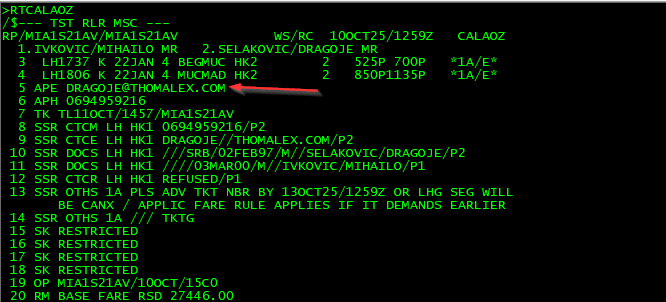

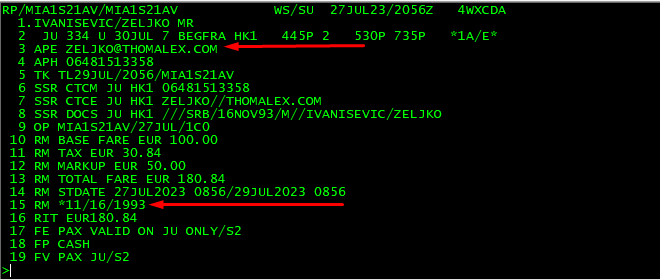

We can see that email contains @thomalex.com, Regarding that, the condition is true and command is executed and it works as expected:

Image 15. Condition is true and remark is added

Example 4:

We will now create a command with the combination of more variables.

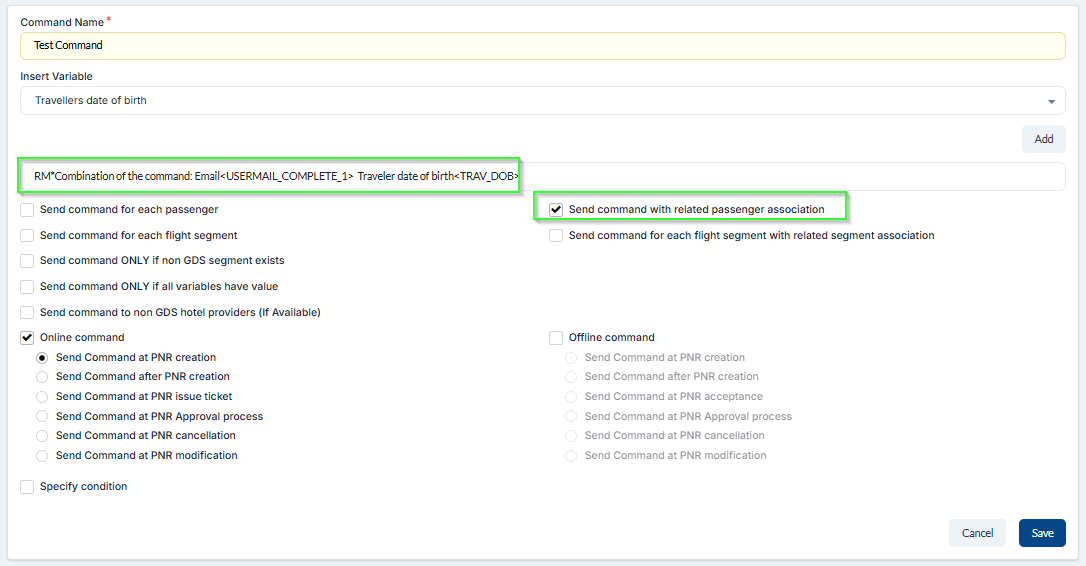

We added variables such as travelers' email, travelers' date of birth, and fare without tax and decimals. Also, we enable the option Send command with related passenger association:

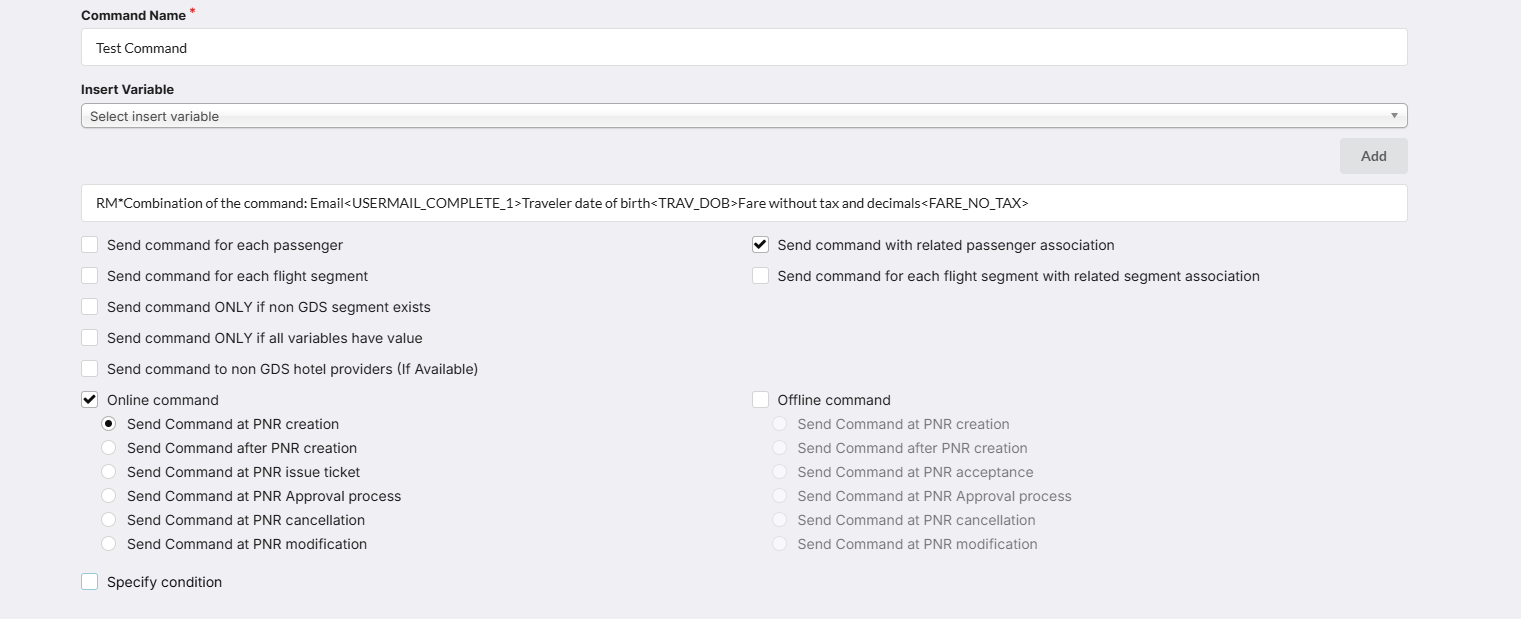

Image 16. Combinations of variables and commands with related passenger association

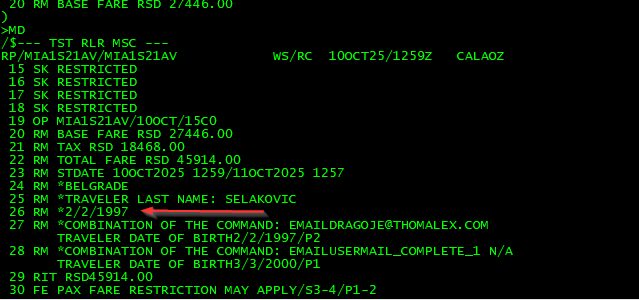

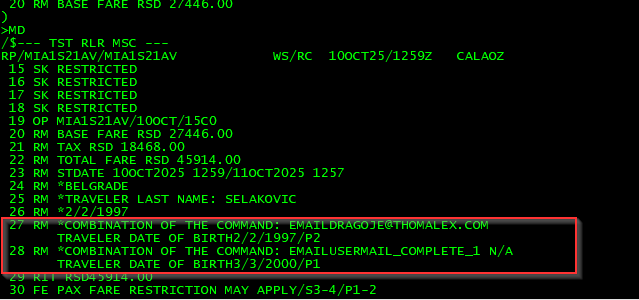

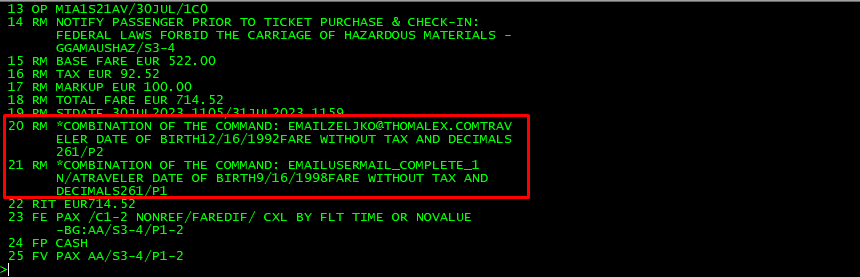

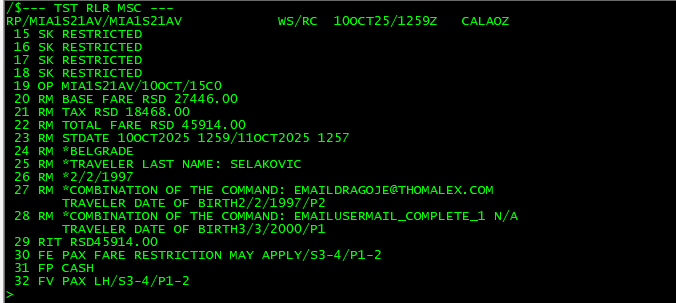

We created a reservation for two adults, and when we retrieve the PNR we can see that two commands are created, and they are related to each passenger. Since that for one traveler we did not enter email, you can see that for P1 variable for email is N/A which is mean that system did not find it. The system executed the command as expected.

Image 17. Command related to passenger association
